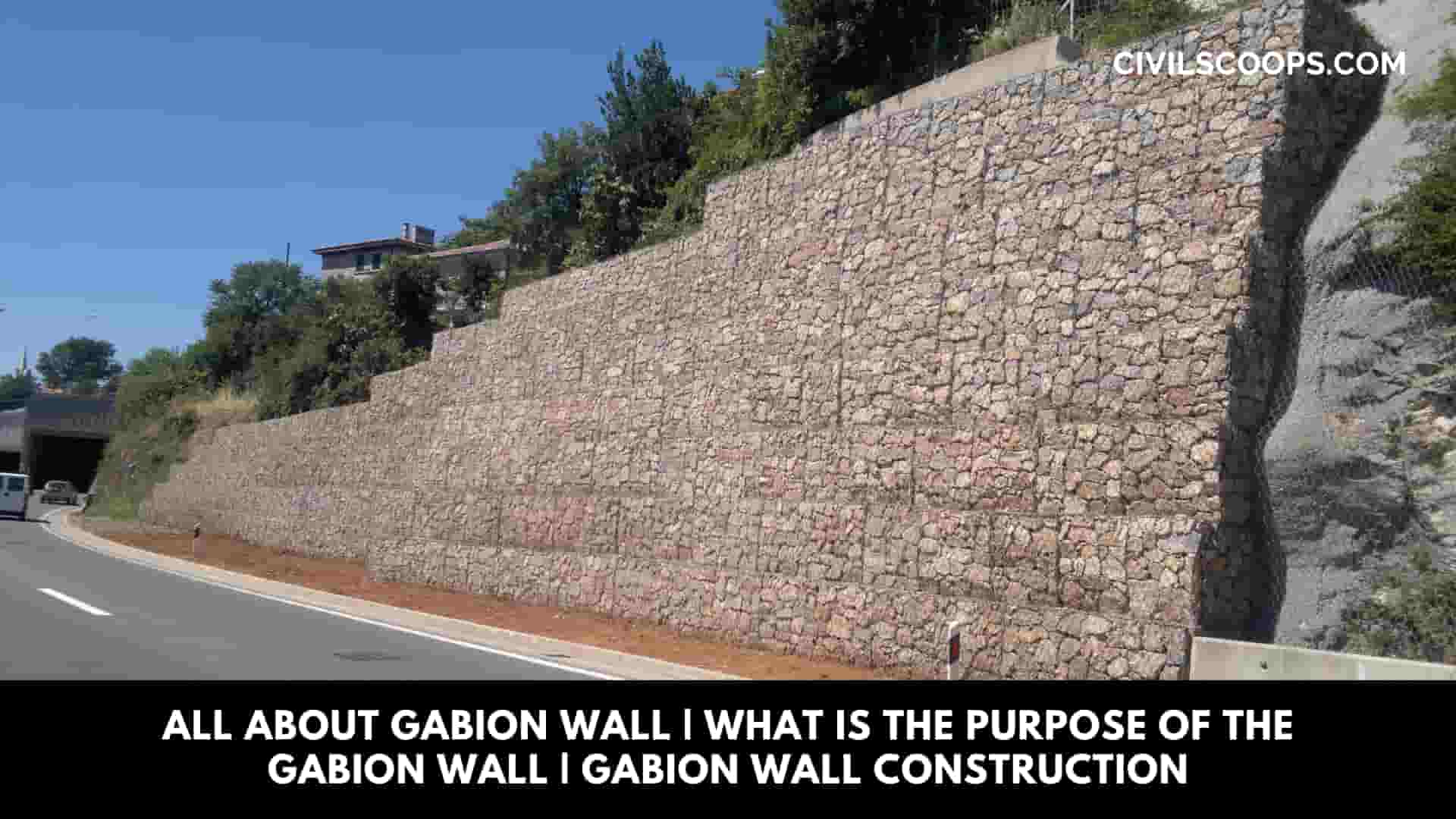

All About Gabion Wall | What Is the Purpose of the Gabion Wall | Gabion Wall Construction
Table of Contents
What Is the Purpose of the Gabion Wall?
A gabion wall is an arresting division designed by mountain rock covered with gabions tied up with wire. As a substitute mountain parallel, gabions retaining walls will commonly deteriorate with the lean surface.
The gabion derives from an Old Italian word ”gabion” expressing vast jail. A gabion wall is a kind of gabion wall, and the gabion design wall will apply to save the side of the river Nile.
Midlife, gabions wall will be used as an army castle and saying ancient times, construction engineers have extensively applied for maintaining construction.
Gabion retaining structure will design for the countryside, and it will use for many years as a magnetic kind retaining structure and creates a pleasant wall, organized and effortless structure method.
Gabion Wall Construction
Gabion walls will hugely be designed for the soil to equalize facts below the wall, and at a time, it will carry out as a fixed wall, and gabion wall will conform to the structure’s distance. It performs service with gabion holder which will connect multiple lines.
These gabion holder structures have a stock-type design that can draw out on whole sides. The container will create from activated six edges webbing, and gabion will make from cracked rocks; express these cracked rocks will cover the interior of the holder.
The gabion retaining structure will begin with a category of gabion holders which save contra dissolving. Commonly, the width of the gabion holder is 2m x 2m x 1m, activated webbing has 8cm x 10cm, and its web has six edges with eye shape.
Cracked rocks will apply as a filling object interior of the holder and located with the support of a tool and hand. Then finish filling that cover holder and connect it with an activated steel ring.
After completing the holder activity, the resting place of the holder will cover with a suitable object up to the length of the top of the gabion wall.
Advantages of Gabion Wall
Here, the pros of gabion wall are as follows.
- Gabion structure is long-lasting than the soil balance wall.
- A gabion wall is much more elastic so that simple to turn the length and breadth of the wall.
- Gabion container wall is much spongy.
- A feasible object is accessible.
- The design price of the gabion holder is enormous, but it is a low price.
- It is eco-friendly noise.
- The force of the gabion wall is more.
Disadvantages of Gabion Wall
Here, the cons of gabion wall are as follows.
- The regular price of a gabion wall is low.
- The construction method of structure is very hard.
- Gabion wire holder may subdue to the effect of using erosion of wire.
- Hard to design needed appliances and machines.
Application of Gabion Wall
Here, the application of gabion wall are as follows.
- Gabion wall will apply to the retaining structure.
- The gabion wall will apply for channel twisting and river.
- Gabion container wall saves the road and bridge.
- It will apply to water-pumping walls, drains, and barrage.
- It will apply to seaside barrier activity.
- Gabion holder wall saves the stone fall and soil padding saver.
- It will apply to the siding of structure and construction.
- Gabion wall will apply for structure, sound, and climate barriers.
Also Read: All About Pony Wall | What Is a Pony Wall | Uses of Pony Wall | Pros and Cons of Pony Wall
Gabion Wall Cost Per Meter
The minimum cost of a gabion wall in India is $180/m. The price depends on the kind of object, gabion walls, and the low-price walls you can design, an average of $5 to $40/m.
[su_box title=”FAQ” style=”default” box_color=”#333333″ title_color=”#FFFFFF” radius=”3″ class=”” id=””]
What Is a Gabion Wall?
Gabions are rectangular baskets fabricated from a hexagonal mesh of heavily galvanized steel wire. The baskets are filled with rock and stacked atop one another to form a gravity- type wall.
Gabion Retaining Wall
Gabion retaining walls
gabion retaining wall systems are monolithic gravity mass structures that are ideally suited for erosion control applications and follow standard design methods for gravity and mse retaining walls.
What Is a Gabion Basket?
Gabion baskets are typically rectangular wire mesh baskets filled with small rock of approximately 100-250mm in diameter. The gabion baskets are often placed on top of one another in the form of a vertical or terraced retaining wall against a riverbank to prevent further erosion of the bank.
What Are Gabions Used For?
Gabions are used to slow the velocity of concentrated runoff or to stabilize slopes with seepage problems and/or non-cohesive soils.
What Is a Gabion Basket Used For?
Gabion baskets are most commonly used as retaining walls for erosion control and to prevent slope soil from sliding or eroding. Gabion baskets can also be used to create temporary flood walls, perimeter fences, and can even be used for more creative applications, such as planters, pond surrounds and much more.
What Is a Gabion Cage?
A gabion (from Italian gabbione meaning “big cage”; from Italian gabbia and Latin cavea meaning “cage”) is a cage, cylinder or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, military applications and landscaping.
What Are the Disadvantages of Gabions?
- Gabions are sometimes criticized as being unsightly. …
- Low habitat value.
- Gabions are more expensive than either vegetated slopes or riprap.
- The wire baskets used for gabions may be subject to heavy wear and tear due to wire abrasion by bedload movement in streams with high velocity flow.
Gabion Wall Construction
Gabion wall construction
Gabion is derived from gabbione, an Italian word meaning “big cage.” Gabion walls are made up of gabions, or large cages or baskets, which are filled with rocks, gravel, concrete, or leftover construction materials. These large baskets can be stacked together and connected using heavy-duty wire.
Gabion Wall Foundation
Gabion wall foundation
Most gabion retaining walls don’t need concrete foundations
Depending on the wall height, a 2″ to 4″ layer of compacted 1″ road base, crushed from either blue metal or basalt rock is all that is required for most gabion walls.
Gabion Wall Structure
A gabion wall is a retaining wall made of stacked stone-filled gabions tied together with wire. Gabion walls are usually battered (angled back towards the slope), or stepped back with the slope, rather than stacked vertically.
Are Gabion Walls Expensive?
Depending on the type of fill material, gabion walls are one of the cheapest retaining walls you can build, ranging from $5 to $40 per square foot installed.
How Long Do Gabion Cages Last?
Gabions are designed to be used in permanent structures but their longevity is directly related to the environment they are installed in. This means life expectancy of gabion walls can be anywhere from 10 to 75 years depending on the install environment.
Can You Fill Gabions with Soil?
A Gabion basket is one of the most straightforward things that someone can make for their garden. It is merely a large mesh cage that is filled with earth. You can fill them with sand and soil, rocks, or concrete.
[/su_box]
