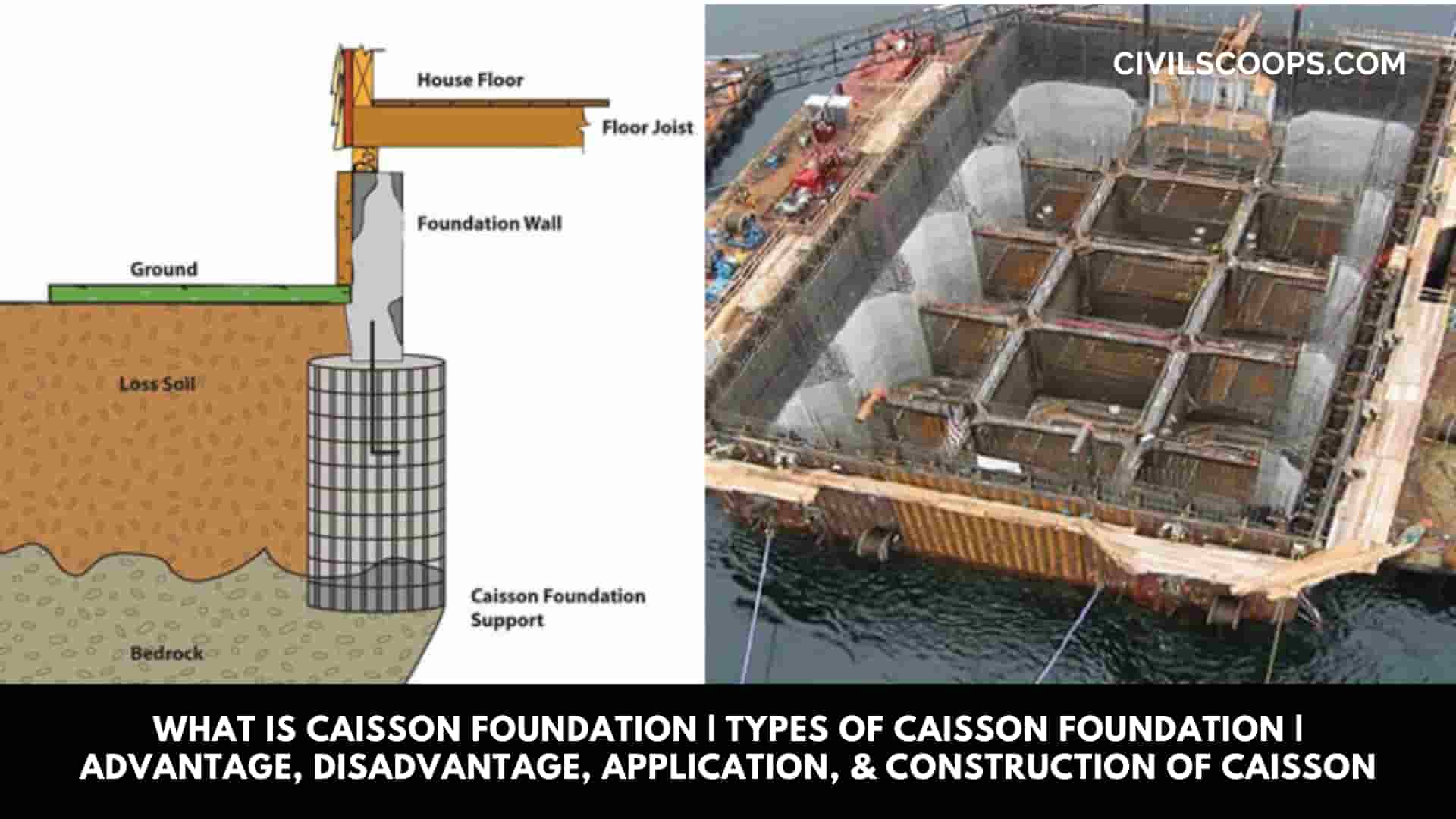

What Is Caisson Foundation Types of Caisson Foundation Advantage, Disadvantage, Application, & Construction of Caisson

What Is Caisson Foundation?

What Is Caisson Foundation

Caisson is a watertight structure which it is generally made up of timber, steel, and reinforced cement concrete (R.C.C) and constructed in connection with the excavation for the foundation of piers, bridges, and dock structures etc.

Basically, the word Caisson means a box-type structure. It is a large diameter foundation which is generally adopted in the underwater Construction.

It is a Prismatic Hollow box for the cylinder which is constructed on the ground and then sunk into the ground at the desired depth and filled with the concrete to form a foundation for the Structure.

Construction of Caisson is a type of well foundation. Caisson foundation is used for the Construction of a Deep foundation.

Caisson Foundation is widely used in the construction of piers of the bridges and the foundations of The structures which are constructed in the rivers or water bodies.

The main functions of caissons are soil or water retention and transfer of vertical and horizontal loads into the subsoil strata.

Also Read: What Is Pier and Beam Foundation | Advantages & Disadvantages of Pier and Beam Foundations | Pier and Beam Foundation Design | How to Build a Post and Pier Foundation


Caisson Foundation

Caisson foundations, also known as pier foundations, are prefabricated hollow substructures designed to be constructed on or near the surface of the ground, sunk to the desired depth and then filled with concrete, thus ultimately becoming an integral part of the permanent structure.

Advantages of Caissons Foundation

Advantages of Caissons Foundation

  1. Excavation and the process of concreting can be done in dry conditions.
  2. Caissons are good in the lateral as well as axial loading capacity.
  3. Caisson is highly adaptable in different site conditions.
  4. Caissons are economical as compared to traditional foundation.
  5. Caisson can be inserted at any place.
  6. It is strong enough to withstand the moments and loads applied to the structure.
  7. Caisson does not require pile caps, because it is filled with concrete.
  8. Caissons have a large cross-sectional area which helps to resist the scouring effect.
  9. Caissons can be extended up to the large depths in the ground.

Disadvantages of Caisson Foundation

Disadvantages of Caisson Foundation

  1. The Inspection and cleaning at the bottom of the Caisson are difficult.
  2. There is a lack of skilled workers which are required for the construction of the Caisson Foundation.
  3. Caissons can not be construed in the contaminated sites.
  4. Caissons are required to be constructed under the supervision of the Experts.
  5. There may be a risk to the workers to get affected by the caisson diseases. So the proper health control is essential.
  6. The limit for the depth of the penetration of the Caisson is up to 35 m.

Application of Caisson Foundation in Civil Engineering

Application of Caisson Foundation in Civil Engineering

  1. It is used in the construction of piers of the bridges in the water bodies.
  2. Caisson is also used in the construction of large and Multi-Floor Buildings.
  3. Caissons provide a platform for installation of machineries and pumps below the ground level.
  4. Pneumatic Caissons are used in the construction of railway bridges.
  5. Caissons are also used to provide access to the shaft and tunnels.

Also Read: Automation in Construction | Advantages of Automation | Applications of Automation | Where Are Use Automation in Construction Sector

Types of Caisson Foundation

Types of Caisson Foundation

The Shape and the size of the Caisson is depended upon the structure for which it is constructed. Caissons are classified mainly into three types.

  • Open Caisson.
  • Box Caisson.
  • Pneumatic Caisson.

1. Open Caisson

Open Caisson

Open Caisson is a box-type hollow structure which is generally open at both top and bottom side. Open Caisson is suitable for the sandy soils and the soil having soft strata where a solid or firm stratum is not available.

Open Caisson is constructed in reinforced cement concrete (R.C.C) and middle portion filled with sand or gravel and the lower portion is filled with the concrete which acts as a concrete plug.

The Construction of the Open caisson is generally preferred in the dry condition or dewatered area.

If it is not possible on the site to construct the Caisson in the dry conditions then it is constructed in the barges or slipways.

According to the shape of the Open Caisson are classified as

  • Single Wall Open Caisson
  • Cylindrical Open Caisson
  • Open Caissons with Dredging Wells.

2. Box Caisson

Box Caisson

The Box Caisson is the same as the open Caisson. The only difference between open and box Caisson is that box Caisson has its bottom side closed.

It is made up of timber, steel, and reinforced cement concrete ( R.C.C). Box type of Caisson foundation is generally used where the bearing stratum of the soil is available at the shallow depth.

3. Pneumatic Caisson

Pneumatic Caisson

Pneumatic Caisson is open at the bottom side and closes at the top side. Pneumatic caisson is specially used at the place where it is not possible to construct well.

It is suitable where the depth of water is more than 12 m. In the construction process of the pneumatic Caisson, the compressed air is used to remove water from the working chamber and the foundation work is carried out in the dry condition.

The process of the Construction of the pneumatic Caisson is the same as the open Caisson. The Quality Control in the Pneumatic Caisson is good because the work is done in the dry conditions. Pneumatic Caissons are more expensive as compared to the Open Caisson.

Construction Method of Caisson Foundation

Construction Method of Caisson Foundation

There are various methods by which Caissons are installed into the ground.

Prefabrication of Caisson

Prefabrication of Caisson

  • Firstly, the caissons are generally prefabricated near the Construction site or at any other suitable location.
  • After prefabrication of the Caissons, they are tested for the water tightness.
  • In the tests, the Caissons are check for any leakages and, if found they are repaired immediately.

Transportation of the Caisson

Transportation of the Caisson

  • Then the Caissons are transported to the required location.
  • The transportation of the Caisson should be done by following all precautionary measures.

Positioning and Immersion of Caissons

Positioning and Immersion of Caissons

  1. It is very important that Caisson should be properly positioned at the desired place.
  2. The final positioning of a caisson is achieved with the help of tug boats or with cables from floating equipment and anchors or dead-man beds.
  3. When the caisson is ready, the soil is dug from the work chamber which causes the caisson to subside into the ground.
  4. Traditionally the excavation is done by the hands but nowadays the sand pumps and other machinery are used for the excavation.
  5. The excavated soil is removed with the help of a hydraulic transport system.
  6. The Caisson is subsided under its own weight.
  7. When the caisson has reached the desired depth, then the work chamber is completely filled with the Concrete. This prevents further sinking of the Caisson.

Also Read: Quality Testing of Sand for Concrete | Quality Testing of Sand for Construction | Types of Sand Test



  • After the immersion of the Caisson, they are ballasted.
  • The main function of the dump of rubble at the side of the caisson is to prevent it to slide away and helps to maintain maximum stability.


How Does a Caisson Work?

Caisson construction is a foundation used in deep water or soft soil. It involves a series of large, watertight cylinders that are sunk into the ground and filled with concrete. The base provides a stable foundation for structures built on top of it. Bridges, docks, and large structures often use caisson construction.

Steel Caissons

A steel caisson is a large diameter steel pipe that is a watertight chamber used in underground consttuction to hold back water and soil. Typically it is filled with rebar and concrete. Arntzen Corporation produces quality large diameter caissons for drilling foundation contractors.

What Is a Caisson in Construction?

Caisson construction is a foundation used in deep water or soft soil. It involves a series of large, watertight cylinders that are sunk into the ground and filled with concrete. The base provides a stable foundation for structures built on top of it.

Types of Caisson Foundation

  • Box Caissons.
  • Excavated Caissons.
  • Floating Caissons.
  • Open Caissons.
  • Pneumatic Caissons.
  • Sheeted Caissons.

Pneumatic Caisson Is a Type Of?

A pneumatic caisson is a watertight box or cylinder-like structure that is closed at the top and open at the bottom, resting on the bed of the waterbody. They are used for underwater construction of foundations for bridge piers, abutments in rivers, and foundations for large multi-story buildings.

Installing Caissons

To install a caisson in place, it is brought down through soft mud until a suitable foundation material is encountered. While bedrock is preferred, a stable, hard mud is sometimes used when bedrock is too deep. The four main types of caisson are box caisson, open caisson, pneumatic caisson and monolithic caisson.

Bridge Caisson Construction

A caisson foundation also called as pier foundation is a watertight retaining structure used as a bridge pier, in the construction of a concrete dam, or for the repair of ships.
