What Are Washers Used for ?
The washer seems to be a thin plate with just a concentration hole which is then used to load a fine fastener equally. For increased safety, a washer may be inserted throughout the end before a wired fitting (such as a screw) is moved into a surface.
The bolt head as well as nozzle do not scratch or dent the surfaces of both secured pieces which ultimately can loosen the fixing. Furthermore, driving a wood screw may cause wood to crack across the surface, as well as a laundry machine significantly reduces it.

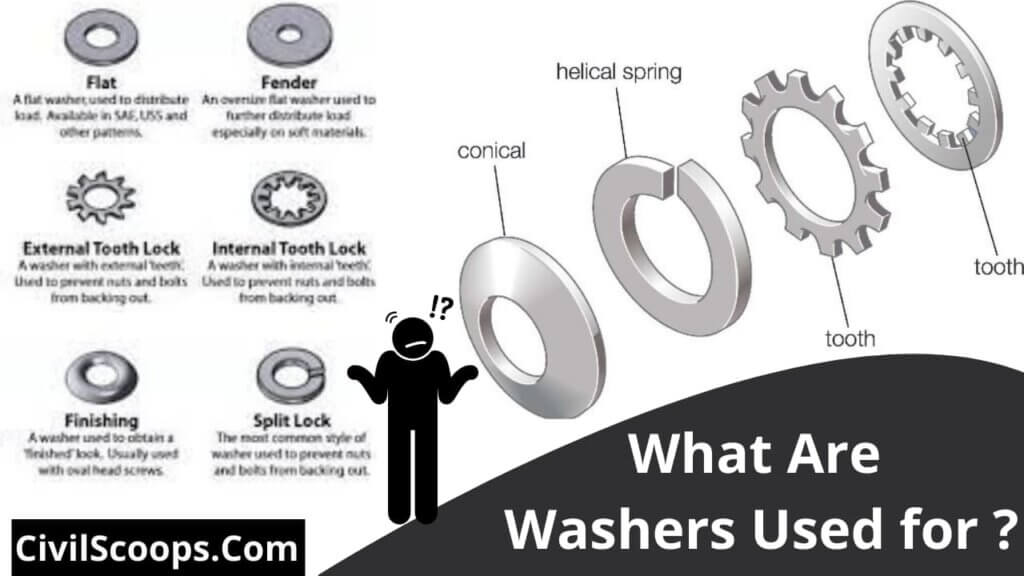

Different Types of Lock Washers
- Split lock cleats are split rings in helical shape. When attached, both ends apply a spring force on the attachment to provide additional friction and motion resistance. The most popular sort of lock washer are helical spring lock washers and ideal for situations with low weights. High-column washer are a sort of washer split.
- Internal lock washer have made teeth bite into the head and surface of the nozzle and tissue. They work best on small electrical grounding screws or screws.
- External washers for lock use have been created to bite the teeth in the carrying surface (also called star washers). An external washer for the tooth lock is meant to give stronger grips than internal washers, which are ideally suited for large screws.
- A washer with tooth lock might leave scratches on its attaches.
- The tab washer is designed for tough situations and features the tab to hold it in place that can be bent against the nut or fixing head.
Also Read: What Is Lap Length? | Lap Length in Beam | Why Lapping Is Provided? | How to Calculate Lap Length? | Lap Length as Per Is Code 456 | What Are the General Rules for Lap Length? | Lapping Zone
Different Types of Washers
1. Flat Washers
The role of flat washers is to enlarge the surface area of a screw, thus lessening the pressure on the attached object.
Looseness can occur as the bearing surface dips below surface pressure, thereby reducing the possibility of this effect by utilising a flat washer. The contact area between a screw bearing surface and the object to be attached is especially significant if it is small or if it is made of a soft material like aluminum or plastic.
As flat washers are often made by pressing metal, there are circumcision on one side and burrs on one side. There is no established rule on what side to place up or down, but it is usually perfect to position the burred side down, and particularly if surface pressure is a matter of worry.
However, the surface of the attached object might be marked by these burrs during string, which allows it to place the rounded side down to prevent plating peeling for certain applications.
2. Spring Washers
Cutting out part of a flat washer (or locking) is done to make washers to form a twisted shape. This leads to an action of the spring or an elastic force. In contrast to the flat washers placed on both the side of the bolt and the nut, the latchers only put on the neck side of the attachment to make a connection.
Initially, these washer were considered effective against looseness because to the higher frictional force supplied by the cutting element that “pants” the bearing surface.
The sharp edges (sometimes additionally tightened) of the laundry are theoretically digged into the nozzle and mounting surface to prevent rotation or loosening against the clock. In high-vibration machines, these components would be perfect.
Unfortunately, due to “bite,” the locking effect is restricted to applications where the connected object’s material is softer than the metal washer. Essentially, in comparison to the axial force of the tightened screw, the elastic force of the spring washer is insignificant. Thus when a spring washer’s elastic force begins to be effective, the screw is in a loosened state.
Moreover, the sharp retention of spring washers normally scratches the bearing surface, which is not perfect for repetitive installation or removal. Exemplary spring washers, coupled with flat washers, are undoubtedly used to prevent damage to the carrying surface. However, this is seldom effective and the consequence is little or no locking action.
Washer are generally used to distribute the weight of a fixing device, reduce friction and loosen. However, the right torque is the greatest approach to ensure a reliable grip and safe application, regardless of which washer is chosen.
Types of Spring Washer
- Belleville Spring washers are the biggest load-bearing capacity of their dimensions and are also known as conical or disc spring washers. They compensate for joint expansion and contraction, span hole, and keep the screw and nut assembles highly tensioned. Each size offers many load-carrying options by combining them in various sequences.
- Curved Spring washers are often applied in simple spring applications with curved (single wave). Relatively modest thrust loads in the curved washers are frequently utilized as locks for fasteners or for absorbing axial end play. The form height and thickness of the material are variables that can be changed to a given load/default function.
- finger spring washers: For ball roller bearings and general applications, the finger spring washers. Excess wear, vibration, noise and end play are counteracted. They encourage efficiency and smooth operation and reduce rotating element wear. In circumstances of unavoidable interior loose clearances, they are also particularly advantageous in particular conditions of application.
- Wave Spring washers: Because of its three-point connection and finer curves or waves, Wave Spring washers have a larger carrying capability. These are usually utilized in modest deflections, mainly where radial space is limited, in thrust loading applications. The weights are spread evenly and no sharp edges are available to interfere or rot. The load function is regulated by height and material thickness.
- Shaft Lock Nuts: Low-carbon steel Shaft Lock Nuts are manufactured. Need a lock washing machine and a key shaft cutting procedure. The most popular lock noodle utilized.
- Shaft Lock washer: The washers with lock-nut series “N/AN” are used for shaft lock. In contrast to the tangs, the key is bent. Used most frequently and cheaply.
Also Read : Types of Wood
How to Use a Washers?
- First place the bolt into the washer to utilise the washer correctly.
- Slide the bolt into the mounting hole and wash it.
- After the bolt is threaded into the hole, start twisting the bolt head with the corresponding clamp. Squeeze the bolt to the washer until the head is in touch with the washer.
- Pull the bolt to a torque clamp if your installation instructions need this.
- Put a torque clamp over the bolt head and crank it till the torque clamp pops and reads.
- The bolt and washer are tightened appropriately when the read matches to the correct torque necessary for your installation.
Locking Washer Use
- Lock washers are often utilised to vibrate and perhaps slip attachments in applications.
- Transport-related industries that regularly use lock washers (automotive, aircraft, marine).
- Lock washers can also be employed in home appliances like air handlers and clothing washers.
Fender Washer Vs Flat Washer
- Description: Fenders are flat washers with small hole and a relatively large external diameter called for their common use for automobile washers.
- Application: Force distribution across a wide region usually thin metal.
- Description: The flat washer is what most people think of as a conventional washer, often known as the simple washer type A. • Description: It is circular and flat, with different densities and a centre hole to hold a bolt.
- Application: Used for force allocation or hole size correction. Good to be used in general.
When to Use Washers?
Washers are usually required once the manufacture of bolts and nozzles is not tight enough. Washers are utilized to increase the distance between the aluminum nut and the object. This provides a further leverage to design it tightly.
In addition, washers can also be utilized to provide further waterproof attachment. For example, you can use a washer to screen the product if you guard the spill between the goods and the fastening. This can only work, though, if you use a washer of high quality.
Once assembled with washers, threaded attachments provide a trustworthy auxiliary task. The washers, in particular, protect the surface during installation from injury. The pressure is distributed and the attachment foreshadowed by motion or chemical reactions.
Reduced use of washers could contribute to your product having a limited lifetime. In the end, it ends in the holocaust for the goods.
A washer is a thin plate that has a hole (usually in the centre but sometimes square), often used to spread loads of a threaded attachment such as a bolt or a nozzle. a washer is a thin plate.
Purpose of Washers
- Most washers primarily aim to uniformly divide the load of the threaded attachment utilized.
- Threaded attachments stress the material they are forced into.
- For instance when a screw is driven into the wood, the wood may split around the surface.
- Washing machines minimize the possibility of such harm if the load of the attachment is evenly distributed across the material surface.
- It is not necessary to use washers for every material. However, when the threaded fixer is driven into the material, washers are helpful to protect wood and other comparatively soft materials from stress-related damage.
